Why use this rule ? In designs with fine pitch parts the pad to pad spacing may be less than the desired track to track spacing.
That's It !
That's It !
Friday, June 3, 2016
PCB Rule - Track to Track

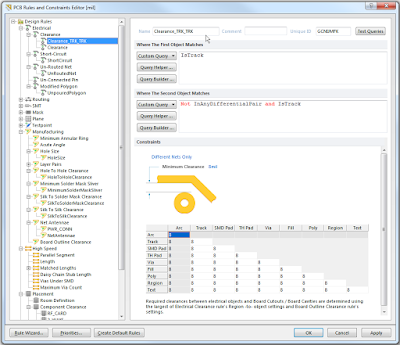

The rule shown below can be used to create a desired track to track clearance.
